USS Pennsylvania
Model Building Pictures
Model scale is 1:164.3 (1"=13.66'
 |
 |
|

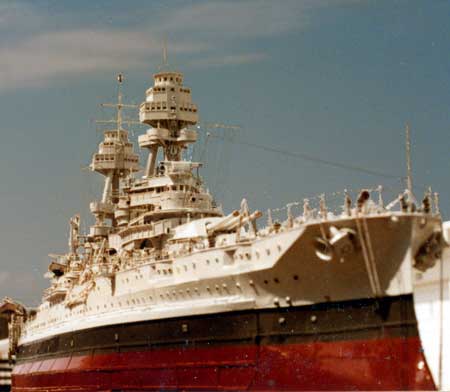

Bow view showing anti-torpedo bilge |
Turret top catapult
and quarter deck area |
 |
 |
|

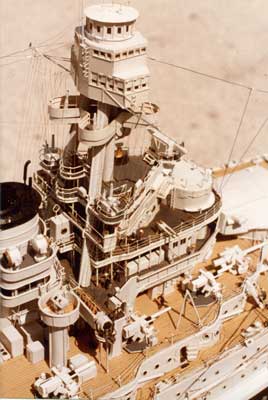

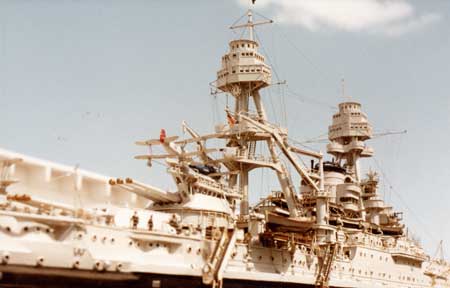

View of bridge, conning tower, and flag bridge
areas with forward tripod mast and fire control house surmounting
it; also a good view of five inch, 25 caliber anti-aircraft guns on
boat deck, 01 level |

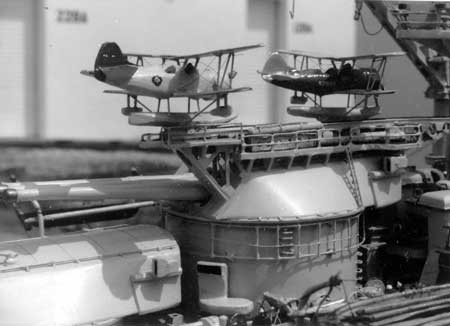

View of X 14 inch gun turret showing Chance
Vought O3U spotting planes on turret top catapult |
 |
|

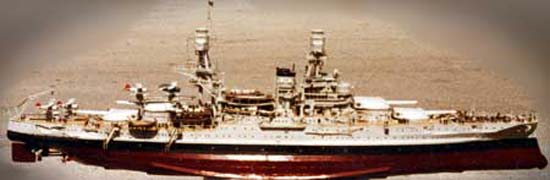

| Side of the Model | |
 |
 |
|

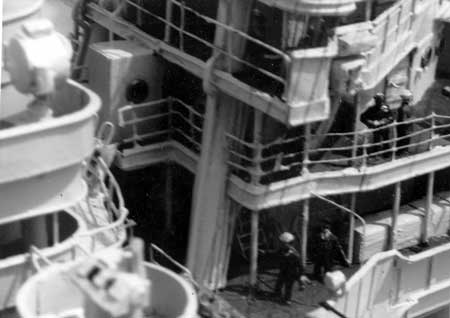

Aft end of flag bridge and anti-aircraft
director abeam funnel, including searchlight platform |

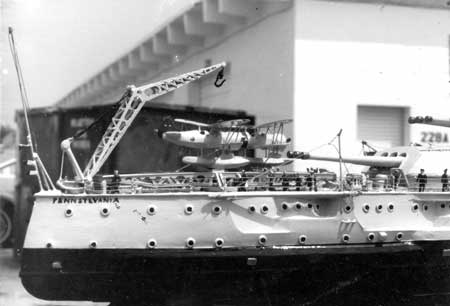

Stern catapult and aircraft crane |
